Product Description

PDF Downloads


Delivery

Free UK Mainland : 2 - 5 working days

NEXT WORKING DAY DELIVERY Options to include anytime or AM deliveries - call for details - Orders must be received before 12pm.


Guarantee

2 year manufacturers full warranty included




Features and Benefits
· Integral 7 day programmable timer
· Programmable filter change indicator
· Energy Saving ECO mode
· Electronic temperature control, programmable between 80°C - 98°C
· Comprehensive diagnostics system

Installation
As per instructions supplied.

Plumbing
Designed for direct connection to a potable cold water supply using the fittings supplied. An isolating valve should be installed between the supply and the heater. These wall mounted boilers have a rear connection and overflow and requires two bar incoming water pressure.


Electrical
To be connected to 230 volt 13 amp or 30 amp (6kW) supply.


Construction
Stainless steel or impact resistant thermoplastic case.
Stainless steel heating chamber.
Low voltage switching.
2 safety cut-outs.


Approvals
WRAS approved.

SELECTED FEATURES

SPECIFICATION FOR WMSP7 Wall Mounted SureFlow

Height (mm)
456
Width (mm)
320
Depth (mm)
225
Tap Depth (mm
90

TECHNICAL DATA FOR WMSP7 Wall Mounted SureFlow*

Power loading (kW)
3
Heat-up time (mins)
20
Recovery Rate (litres)
0.5
Rapid Draw-Off (litres)
7
Rapid Draw-Off (cups)
42
Hourly Output (litres)
28
Hourly Output (cups)
168
Stand by Loss (kW/h)
0.1
* Based on 6 Cups Per Litre

Specifications

Manufacturer
Instanta
Type
Water Boiler - Wall Mounted
Height
456 mm
Width
320 mm
Hourly Output
28 Ltrs (168 cups)
Rapid Draw Off
7 Ltrs (42 cups)
Security
Built in water filter
Power
Single phase - Hard wired
Parts Guarantee
2 Years included
Standard Delivery
2 - 3 working days - postcode dependent
Next Working Day
Order before 12 noon today and receive next working day (mon to Friday) - Optional Upgrade
Design
Single tap
Brand
Instanta
Condition
New
Product Code
WMSP7

Customer Reviews

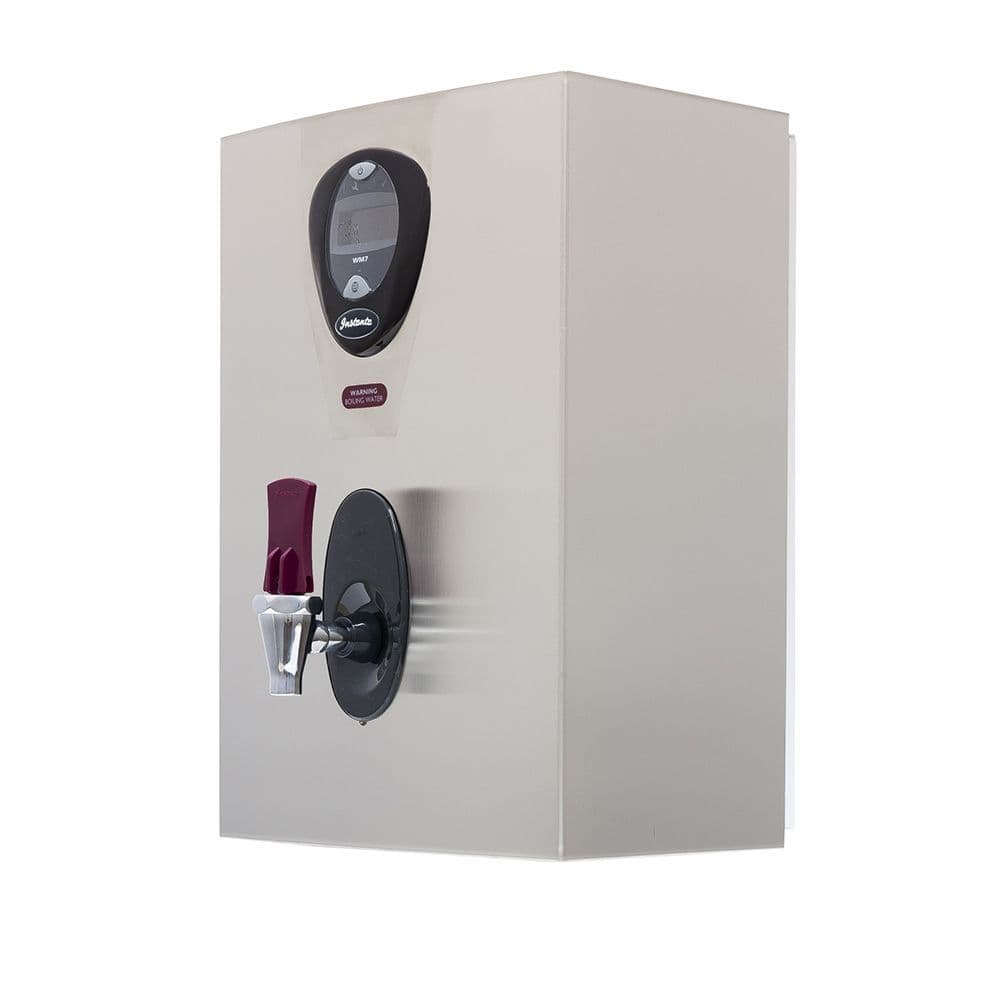

Instanta WMSP7 SureFlow Plus Wall Mounted 7Ltr (WM7SS)

Item in Stock

Product Code WMSP7

Key Features
320 x 225 x 456 mm (WxDxH)
Wall Mounted
Rapd Draw Off : 7 Ltrs (42 cups)
Hourly Output : 28 Ltrs (168 cups)
